1756 Controllogix Modules, IO
Choose Options from Drop-Down List Above or please send request to sales@plcgear.com.au
Condition: NEW (Factory Sealed)
In stock at supplier (7-10 Days Delivery)
Chassis, Power Supplies, Communications & Accessories
DC Inputs
1756IB16 10-31 VDC Input 16 Pts (20 Pin)
1756IB16D 10-30 VDC Diagnostic Input 16 Pts (36 Pin)
1756IB16I 10-30 VDC Isolated Input 16 Pts (36 Pin)
1756IB32 10-31 VDC Input 32 Pts (36 Pin)
DC Outputs
1756OB16D 19-30 VDC Diagnostic Output 16 Pts (36 Pin)
1756OB16E 10-31 VDC Electronically Fused Output 16 Pts (20 Pin)
1756OB16I 10-30 VDC Isolated Output 16 Pts (36 Pin)
1756OB32 10-31 VDC Output 32 Pts (36 Pin)
1756OB8 10-30 VDC 2 Amp Output 8 Pts (20 Pin)
1756OB8EI 10-30 VDC Isolated Electronically Fused Output 8 Pts (36 Pin)
1756OB8I 10-30 VDC Isolated Output 8 Pts (36 Pin)
Relay Outputs

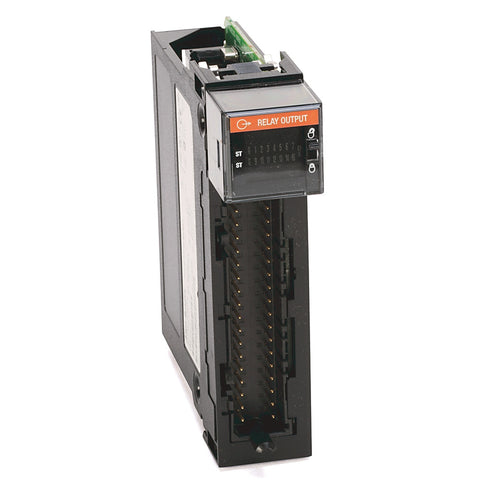

1756OW16I N.O. Isolated Relay Output 16 Pts (36 Pin)
1756OX8I N.O./N.C. Isolated Relay Output 8 Pts (36 Pin)
Analog Inputs
1756IF16 Analog Input - Current/Voltage 16 Pts (36 Pin)
1756IF4FXOF2F Fast Analog 4 Cur-Volt In/2 Cur-Volt Out (36 Pin)

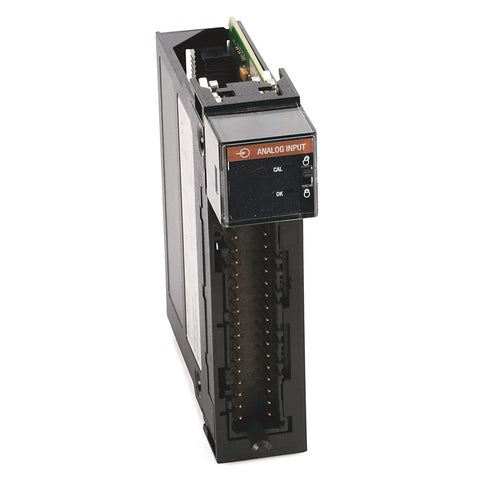

1756IF8 Analog Input - Current/Voltage 8 Pts (36 Pin)

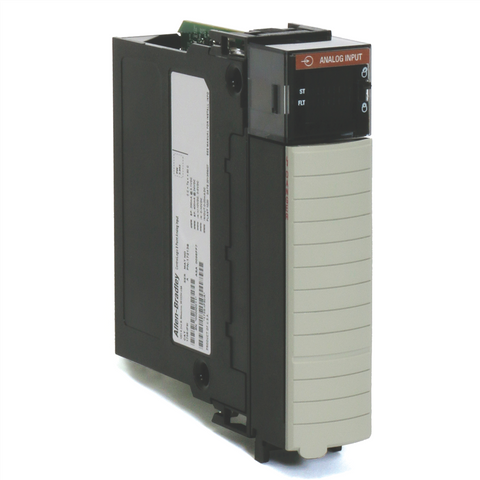

1756IF8I Analog Input Module, 8 Isolated Points, Current, Current Sourcing and Voltage 36 Pin (Uses termination Housing 1756-TBCH sold separately)
Analog Outputs

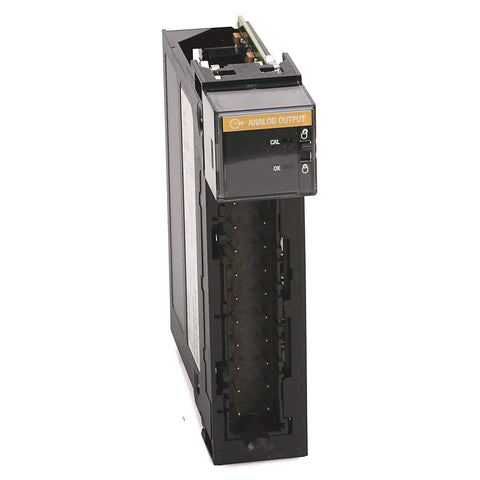

1756OF4 Analog Output - Current/Voltage 4 Pts (20 Pin)
1756OF6CI Isolated Analog Output - Current 6 Pts (20 Pin)
1756OF6VI Isolated Analog Output - Voltage 6 Pts (20 Pin)
1756OF8 Analog Output - Current/Voltage 8 Pts (20 Pin)
1756OF8I Analog Output Module, 8 Isolated Points, Current and Voltage (36 Pin)
Specialty Modules
1756HSC 2 Channel / 4 Output High Speed Counter (36 Pin)

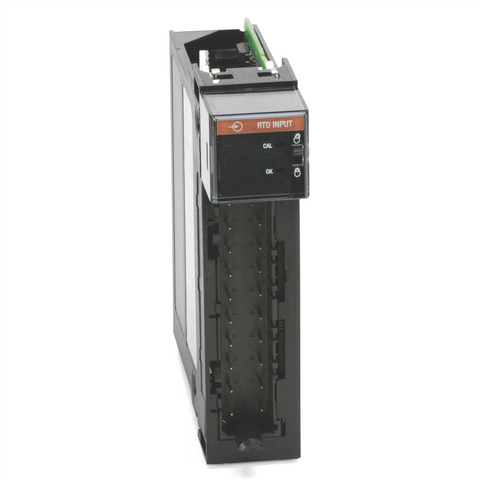

1756IR6I Isolated RTD Input 6 Pts (20 Pin)
1756IT6I Isolated Thermocouple/Mv Input 6 Pts (20 Pin)

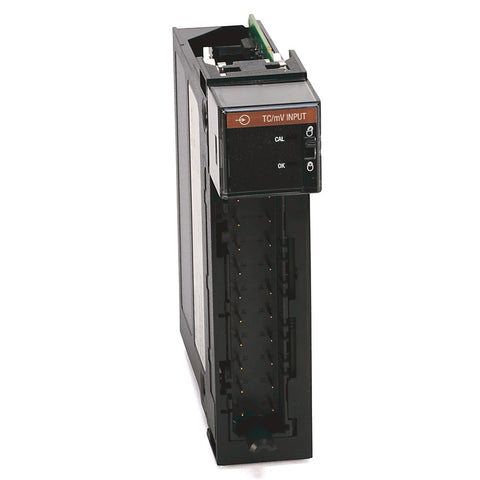

1756IT6I2 Enhanced Isolated Thermocouple/Mv Input 6Pts (20 Pin)

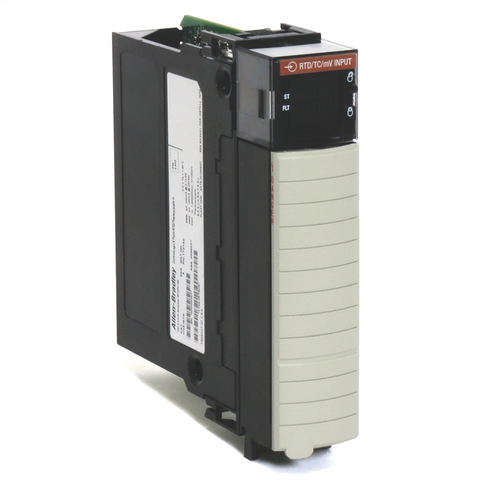

1756IRT8I RTD / Ohms / Thermocouple / mV Input Module, 8 Individually Configurable Isolated Points (36 Pin)
SERCOS & Servos
1756M02AE 2-Axis Servo, Analog/ENC-LCP
1756M02AS 2 Axis Analog/SSI Servo Module
1756M03SE 3 Axis SERCOS Interface Servo Module
1756M08SE 8 Axis SERCOS Servo Module
1756M08SEG 8 Axis SERCOS interface module Extended Pack Profile compliant
1756M16SE 16 Axis SERCOS Servo Module
AC Inputs

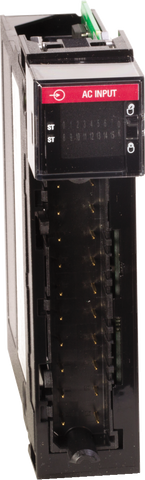

1756IA16 79-132 VAC Input 16 Pts (20 Pin)
1756IA16I 79-132 VAC Isolated Input 16 Pts (36 Pin)
1756IA32 74-132 VAC Input 32 Pts (36P)
1756IA8D 79-132 VAC Diagnostic Input 8 Pts (20 Pin)
1756IM16I 159-265 VAC Isolated Input 16 Pts (36 Pin)
AC Outputs
1756OA16 74-265 VAC Output 16 Pts (20 Pin)
1756OA16I 74-265 VAC Isolated Output 16 Pts (36 Pin)
1756OA8 74-265 VAC 2 Amp Output 8 Pts (20 Pin)
1756OA8D 74-132 VAC Diagnostic Output 8 Pts (20 Pin)
1756OA8E 74-132 VAC Elec Fused 2A Output 8 Pts (20 Pin)
Accessories

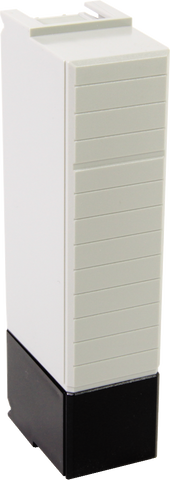

1756N2 Slot Filler module for standard ControlLogix chassis

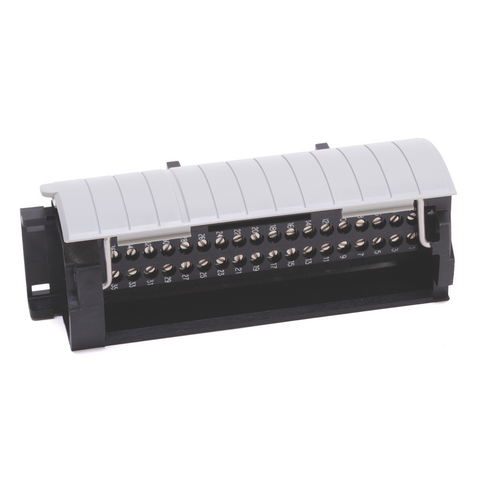

1756TBCH 36 Pin Screw Clamp Block With Standard Housing
1756TBNH 20 Position NEMA Screw Clamp Block

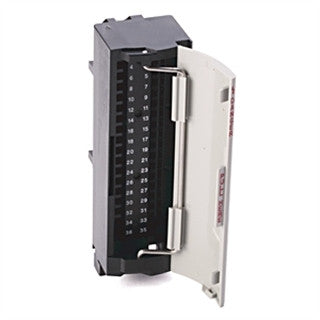

1756TBS6H 36 Pin Spring Clamp Block With Standard Housing

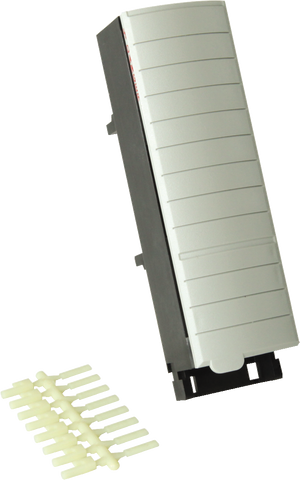

1756TBSH 20 Pin Spring Clamp Block With Standard Housing
ControlLogix I/O Modules
ControlLogix I/O modules provide high performance distributed and local input/output solutions for industrial automation, process control, and machine control applications. Designed for use with 1756 chassis based control systems, these modules support scalable and flexible architectures for manufacturing, utilities, infrastructure, material handling, and process industries.
The ControlLogix I/O platform includes digital input and output modules, analog modules, safety I/O, HART modules, motion modules, communication interfaces, high speed counter modules, and specialty control modules. The modular design allows systems to be configured for both local chassis installations and distributed EtherNet/IP based I/O networks.
1756 I/O modules support features including removable terminal blocks, online module replacement, integrated diagnostics, timestamping, and producer/consumer communications for high speed control system performance. Available module densities and signal types support a wide range of industrial applications including AC and DC digital signals, analog current and voltage, thermocouples, RTDs, and isolated process control signals.
Key Features:
- Modular chassis based I/O platform
- Digital, analog, safety, HART, motion, and specialty modules available
- Supports local and distributed I/O architectures
- Compatible with 1756 ControlLogix chassis systems
- EtherNet/IP and industrial network integration
- Removable terminal block connections
- Integrated diagnostics and status indicators
- Online module replacement support
- High speed producer/consumer communications
- Available conformal coated and extreme environment models
- Suitable for manufacturing, process control, utilities, mining, and infrastructure systems
PLC GEAR supplies a wide range of ControlLogix I/O modules, communication cards, terminal blocks, chassis components, power supplies, and replacement parts for industrial automation systems across Australia and worldwide.
