Condition: NEW (Factory Sealed)

Choose Options from Drop-Down List Above or please send request to sales@plcgear.com.au

*For 1400 Controllers Click Here

*For 1100 Controllers Click Here

Normally In Stock (2 -3 Days)

Expansion Modules

• 1762IQ16    1762 MicroLogix, 16 Point 24 VDC Sink/Source Input Module
• 1762IF4    1762 MicroLogix, 4 Channel Current/Voltage Analog Input Module
• 1762OB16    1762 MicroLogix, 16 Point 24 VDC Source Output Module
• 1762OW16    1762 MicroLogix, 16 Point VAC/VDC Relay Output Module

Normally In stock at supplier (7-10 Days Delivery)

Expansion Modules

• 1762IA8    1762 MicroLogix, 8 Point 120 VAC Input Module

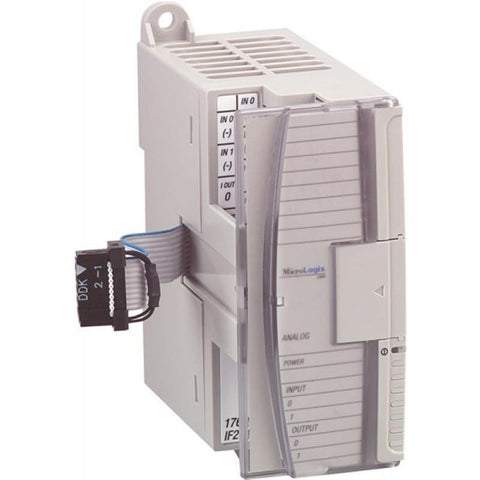

• 1762IF2OF2    1762 MicroLogix, 4 Channel Analog Combo Module
• 1762IQ32T    1762 MicroLogix, 32 Point 24 VDC Sink/Source Input Module
• 1762IQ8    1762 MicroLogix, 8 Point 24 VDC Sink/Source Input Module
• 1762IQ8OW6    1762 MicroLogix, 8 Point 24 VDC Sink/Source Input/6 Point VAC/VDC Relay Output Combination Module
• 1762IR4    1762 MicroLogix, 4 Channel, RTD/Resistance Module
• 1762IT4    1762 MicroLogix, 4 Channel, Thermocouple/Mv Module
• 1762OA8    1762 MicroLogix, 8 Point 120/240 VAC Output Module
• 1762OB32T    1762 MicroLogix, 32 Point 24 VDC Source Output Module
• 1762OB8    1762 MicroLogix, 8 Point 24 VDC Source Output Module
• 1762OF4    1762 MicroLogix, 4 Channel Analog Output Module

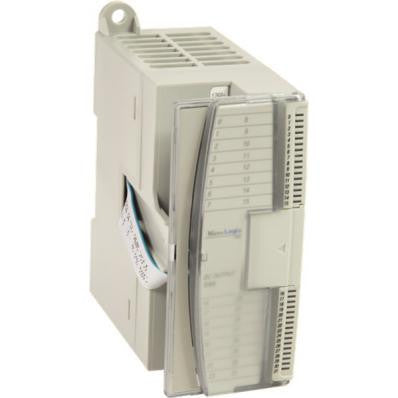

• 1762OV32T    1762 MicroLogix, 32 Point 24 VDC Sink Output Module
• 1762OW8    1762 MicroLogix, 8 Point VAC/VDC Relay Output Module

Please Email sales@plcgear.com.au for Availability as not always in stock

• 1762OX6I    1762 MicroLogix, 6 Point 24 VDC Isolated High Current Relay Output Module


MicroLogix Expansion I/O Modules

The 1762 MicroLogix Expansion I/O platform provides flexible digital, analog, and specialty input/output expansion for MicroLogix 1100, 1200, and 1400 controller systems. Designed with a compact modular rackless architecture, the 1762 series allows machine builders and industrial automation systems to expand I/O capacity while reducing panel space and simplifying installation.

The modular side expansion design supports both DIN rail and panel mounting configurations, helping reduce installation costs and replacement parts inventory while maintaining flexible control system layouts.

The 1762 platform supports a wide range of industrial automation applications including machine control, material handling, packaging systems, water treatment, HVAC, pumping systems, and OEM equipment.

Key Features

• Compact modular rackless I/O expansion platform
• Compatible with MicroLogix 1100, 1200, and 1400 controllers
• Digital, analog, and specialty I/O modules available
• DIN rail and panel mount installation support
• Integrated high performance I/O communication bus
• Finger safe terminal block design
• Software keying protection for module positioning
• Compact footprint for reduced panel space requirements
• Integrated labeling area for I/O terminal identification
• Supports industrial network architectures including EtherNet/IP, DeviceNet, and DH-485

1762 Digital Expansion I/O Modules

Available digital module configurations include:

• 8 point digital I/O modules
• 16 point digital I/O modules
• 32 point digital I/O modules
• AC input modules
• DC input modules
• Relay output modules
• AC/DC relay output modules
• Combination modules with 8 inputs and 6 relay outputs

1762 Analog Expansion I/O Modules

Available analog modules include:

• 4 channel differential analog input modules
• 4 channel analog output modules
• Combination modules with 2 analog inputs and 2 analog outputs

1762 Specialty Expansion I/O Modules

Available specialty modules include:

• RTD modules with 4 input channels
• Thermocouple modules with 4 input channels and integrated CJC sensor

Maximum Supported Expansion Modules

• MicroLogix 1100 — Supports up to 4 expansion I/O modules
• MicroLogix 1200 — Supports up to 6 expansion I/O modules
• MicroLogix 1400 — Supports up to 7 expansion I/O modules
