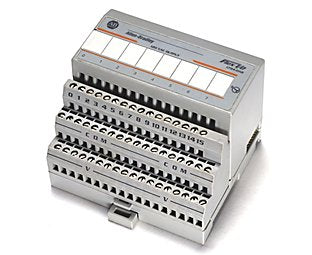

FLEX I/O Modules

Our Bulletin 1794 FLEX™ I/O modules offer flexibility for your application with digital, analog, HART analog, and specialty I/O, with 4…32 points per module. You can mix and match digital and analog I/O with mounting and wiring options.

 Digital Inputs

• 1794IB8    Flex I/O, Input Module, 24VDC, 8 Sink Inputs
• 1794IB16    Flex I/O, Input Module, 24VDC, 16 Sink Inputs
• 1794IB16D    Flex I/O, Input Module, 24VDC, 16 Sink Inputs, Diagnostic
• 1794IB32    Flex I/O, Input Module, 24VDC, 32 Sink Inputs


Digital Outputs

• 1794OB8    Flex I/O, Output Module, 24V DC, 8  Source Outputs
• 1794OB8EP    Flex I/O, Output Module, 24V DC, 8 , Electronically Protected
• 1794OB16    Flex I/O, Output Module, 24V DC, 16  Source
• 1794OB16D    Flex I/O, Output Module, 24V DC, 16  Source, Diagnostic
• 1794OB16P    Flex I/O, Output Module, 24V DC, 16  Source, Protected
• 1794OB32    Flex I/O, Output Module, 24V DC, 32  Source
• 1794OB32P    Flex I/O, Output Module, 24V DC, 32  Source (2 of 16)
• 1794OW8    Flex I/O, Relay Contact Output Module, 8 Point Isolated


Digital Combination

• 1794IB10XOB6    Flex I/O, Combination, 24VDC, 10 In Sink/6 Out Source
• 1794IB16XOB16P Flex I/O, Combination, 24VDC, 16 In Sink/16 Out Source


Analog Inputs

• 1794IE8    Flex I/O, Analog Input Modules, 8 Single-Ended Inputs
• 1794IE12    Flex I/O, Analog Input Modules, 12 Single-Ended Inputs
• 1794IE4XOE2    Flex I/O, Analog Combo, 4 Inputs / 2 Single-Ended Outputs
• 1794IE8XOE4    Flex I/O, Analog Combo, 8 Inputs / 4 Single-Ended Outputs
• 1794IF2XOF2I    Flex I/O, Analog Combination Module, 2 Inputs / 2 Isolated
• 1794IF4I    Flex I/O, Analog Input Module, 16 Bit, 4 Point Isolated


Analog Outputs

• 1794OE4    Flex I/O, Analog Output Modules, 4 Single-Ended Outputs
• 1794OE12    Flex I/O, Analog Output Modules, 12 Single-Ended Outputs
• 1794OF4I    Flex I/O, Analog Output Module, 16 Bit, 4 Point Isolated


Encoder, HighSpeed, RTD, Counters

• 1794ID2    Flex I/O, Input Module, 2-Channel Incremental Encoder
• 1794VHSC    Flex I/O, 2-Channel 1 Mhz Very High Speed Counter
• 1794IP4    Flex I/O, Input Module, 4-Channel 12/24VDC Pulse Counter
• 1794IR8    Flex I/O, Input Module, 8 Point RTD
• 1794IRT8    Flex I/O, Input Module, Non-Isolated, Thermocouple / RTD / Mv
• 1794IT8    Flex I/O, Input Module, Thermocouple, 8 Point

 Bases

• 1794TB3 FLEX I/O TERMINAL BASE 3 WIRE CAGE CLAMP
• 1794TB32 FLEX I/O TERMINAL BASE FOR 32 POINT
