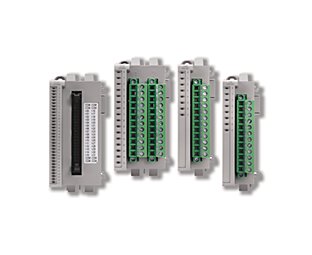

Micro850 Expansion I/O Modules

Our Bulletin 2085 Micro800 Expansion I/O modules extend the capabilities of the Micro850 and Micro870 controllers by maximizing flexibility of the I/O count and type. The I/O module snaps firmly to the right side of Micro850 and Micro870 controllers, supporting both DIN rail and panel mount.

Condition: NEW (Factory Sealed)

In stock at supplier (Email for Availability, Normally 1-2 Weeks)

Choose Options from Drop-Down List Above or please send request to sales@plcgear.com.au

Micro850 Input Module

• 2085IA8 Digital, 8 Point, 120 VAC
• 2085IF4 Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA
• 2085IF8 Analog, Voltage/Current, 8 Channels, Bipolar, +-10V, 0-20mA
• 2085IM8 Digital, 8 Point, 240 VAC
• 2085IQ16 Digital, 16 Point, 12/24VDC, Sink/Source , IEC
• 2085IQ32T Digital, 32 Point, 12/24VDC, Sink/Source , IEC
• 2085IRT4 Analog, Thermocouple/RTD, 4 Channels

Micro850 Output Module

• 2085OA8 Digital, 8 Point, 120/240V AC, Triac
• 2085OB16 Digital, 16 Point, 12/24VDC, Source
• 2085OF4 Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA
• 2085OV16 Digital, 16 Point, 12/24VDC, Sink
• 2085OW16 Digital, 16 Point, 12/24VDC, Relay, 2A
• 2085OW8 Digital, 8 Point, 12/24VDC, Relay, 2A

Micro850 Accessories

• 2085EP24VDC 24VDC Expansion Power Supply
• 2085ECR Micro850 Expansion I/O End Caps / Terminator
