Allen Bradley - Micro850 L50E Programmable Controllers

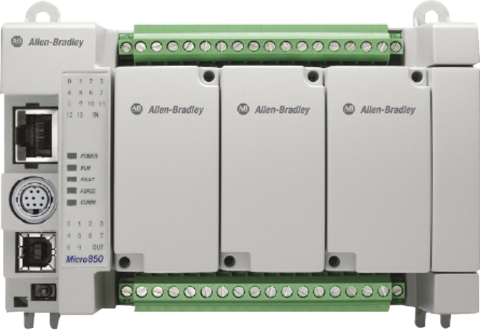

Micro850 L50E Programmable Logic Controller Systems
Gain greater flexibility with expanded capabilities in Micro850 controller catalogs 2080-L50E*
- Increased connectivity with Class 1 implicit messaging capability**
- Simplified integration to PowerFlex® 520 series and Kinetix® 5100 drives through pre-defined tags**
- Improved controller performance with increased I/O response and code execution time
- Increased protocol connectivity with expanded DF1 communications support
- Easy recognition of new controller options with catalog numbers containing E, for Ethernet connectivity, after the controller series. For example: 2080-L50E
* Requires Connected Components Workbench™ software version 20.01 or later
** Requires Connected Components Workbench™ software version 21 or later
Our Micro850® Programmable Logic Controller Systems are designed for larger stand-alone machine control applications that require flexible communications and greater I/O capabilities. These controllers support up to 132 I/O points with high performance I/O, interrupts, and PTO motion plus embedded Ethernet and 2085 expansion I/O.
Condition: NEW (Factory Sealed)
In stock at supplier (Email for Availability, Normally 1-2 Weeks)
Choose Options from Drop-Down List Above or please send request to sales@plcgear.com.au
Micro850 24-Point Programmable Controllers
- 2080L50E24QBB 14-24V DC/V AC Input, 10-24V DC Source Output
- 2080L50E24QWB 14-24V DC/V AC Input, 10-Relay Output
- 2080L50E24QVB 14-24V DC/V AC Input, 10-24V DC Sink Output
- 2080L50E24AWB 14-120V AC Input, 10-Relay Output Controller

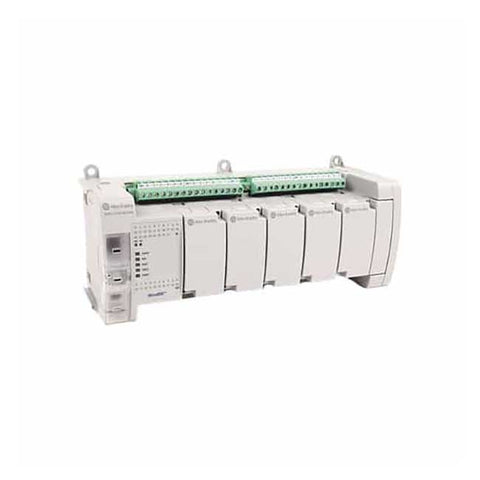

Micro850 48-Point Programmable Controllers
- 2080L50E48QBB 28-24V DC/V AC Input, 20-24V DC Source Output
- 2080L50E48QWB 28-24V DC/V AC Input, 20-Relay Output
- 2080L50E48QVB 28-24V DC/V AC Input, 20-24V DC Sink Output
- 2080L50E48AWB 28-120V AC Input, 20-Relay Output
Features
- Offers 24-point and 48-point controllers
- Includes 100 kHz speed high-speed counter (HSC) inputs on 24V DC models
- Provides embedded communications via USB programming port, non-isolated serial port (for RS-232 and RS-485) and Ethernet port
- Supports up to five Micro800™ plug-in modules
- Supports up to four Micro850® expansion I/O modules, up to 192 I/O points
- Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
- Communicates via EtherNet/IP™
- Operates in -20…+65 °C (-4…+149 °F) temperatures
- Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
