News — HMI

Micro 810

Posted by Simon Banks on

Micro 810

Q: Can you could make a recommendation on a product, or combination of products, that could fit a particular use case for us. We are wanting to control 2 linear actuators and 2 electronic locking bolts. The linear actuators are a fairly simple 2 wire design with automatic stopping at each extreme, no positioning feedback is available or required. Applying power to the wires with one polarity extends the actuator and the reverse polarity retracts it. This means that each actuator could be driven by using either two SPDT relays or a H-Bridge of some kind. The locking bolts are...

Read more →

Allen-Bradley 20G11GC085JA0NNNNN Powerflex 755 AC Drive - w/ Embedded Ethernet/IP - AC Input w/DC Terminals - Open Type - 85A 45kW ND - 400V AC - 3 Ph

Posted by Simon Banks on

Allen-Bradley 20G11GC085JA0NNNNN Powerflex 755 AC Drive - w/ Embedded Ethernet/IP - AC Input w/DC Terminals - Open Type - 85A 45kW ND - 400V AC - 3 Ph

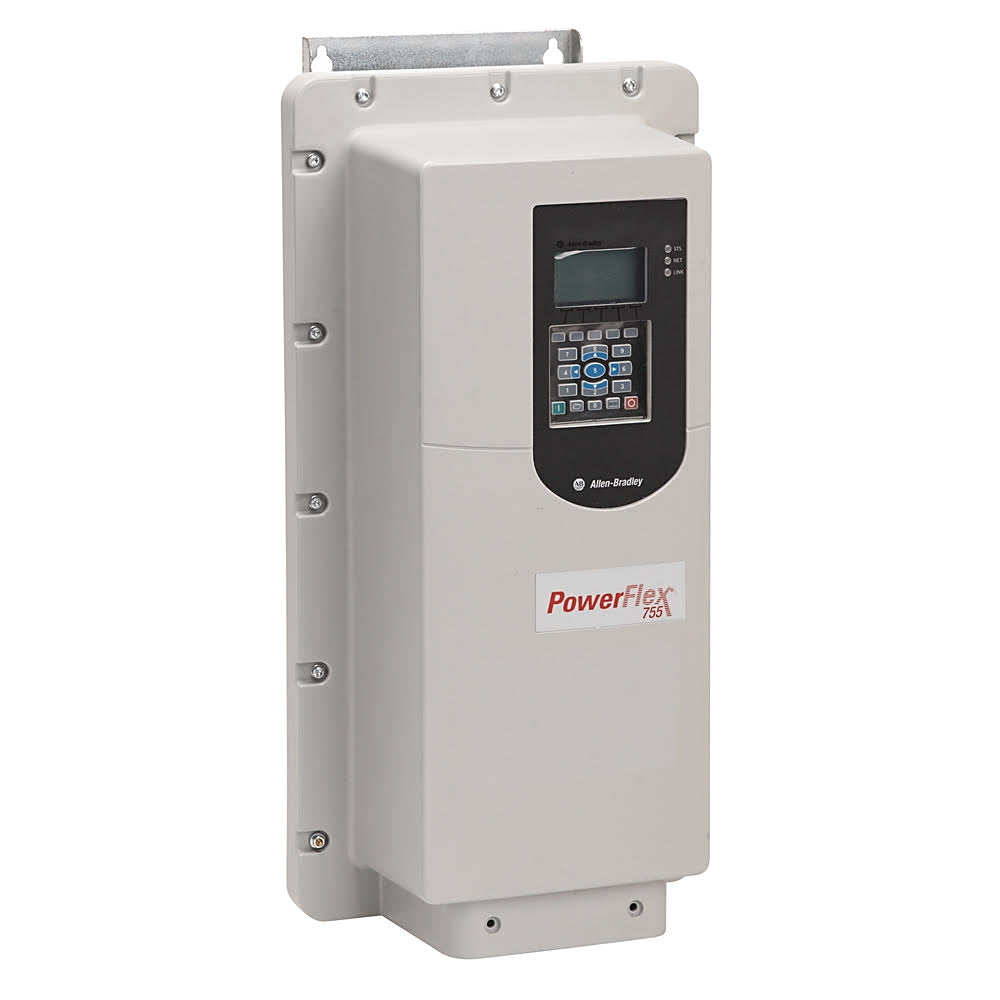

Q: Can you please confirm that the 20G11GC085JAONNNNN is an IP54 drive and not a ‘packaged drive’   20G11GC085JA0NNNNN PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Standard Protection, Forced Air, AC Input with DC Terminals, Type 12 / IP54, 85 Amps, 45kW ND, 37kW HD, 400 VAC, 3 PH, Frame 5, Filtered, CM jumper installed (preferred), DB Transistor, Blank (No HIM)   IP54, NEMA/UL Type 12 (Image from AB product Link)

Read more →

Rockwell VSD with Allen Bradley Power Flex. 1.5 kW or 2kW VSD

Posted by Simon Banks on

Rockwell VSD with Allen Bradley Power Flex.  1.5 kW or 2kW VSD

Q: I am looking for a Rockwell VSD with Allen Bradley Power Flex. My pump is 1.1 kW, so we are looking for a 1.5 kW or 2kW VSD A:  Options for 1.5 or 2.2kw VSDs (depends on mains power supply to unit – if 3 phase or single phase) PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase 25B-D4P0N114    2 HP, 1.5 kW, Frame A 25B-D6P0N114    3 HP, 2.2 kW, Frame A   Allen Bradley - PowerFlex 525 AC Drive, with Embedded EtherNet/IP and – PLC GEAR Pty Ltd       ALLEN BRADLEY -...

Read more →

Q: Do u know anyone who can refurbish 6 x 1763-L16DWD

Posted by Simon Banks on

Q: Do u know anyone who can refurbish 6 x  1763-L16DWD

A:  We have used the following in the past FITSUM Industrial Electronics Solutions | electronics repair shop | 177 Station Road, Deer Park VIC, Australia

Read more →

Allen Bradley - COMPACTLOGIX 1769-L16ER-BB1B COMPACTLOGIX 5370-L1 PROCESSOR 16DI/16DO 384KB RK1040B

Posted by Simon Banks on

Allen Bradley - COMPACTLOGIX 1769-L16ER-BB1B COMPACTLOGIX 5370-L1 PROCESSOR 16DI/16DO 384KB RK1040B

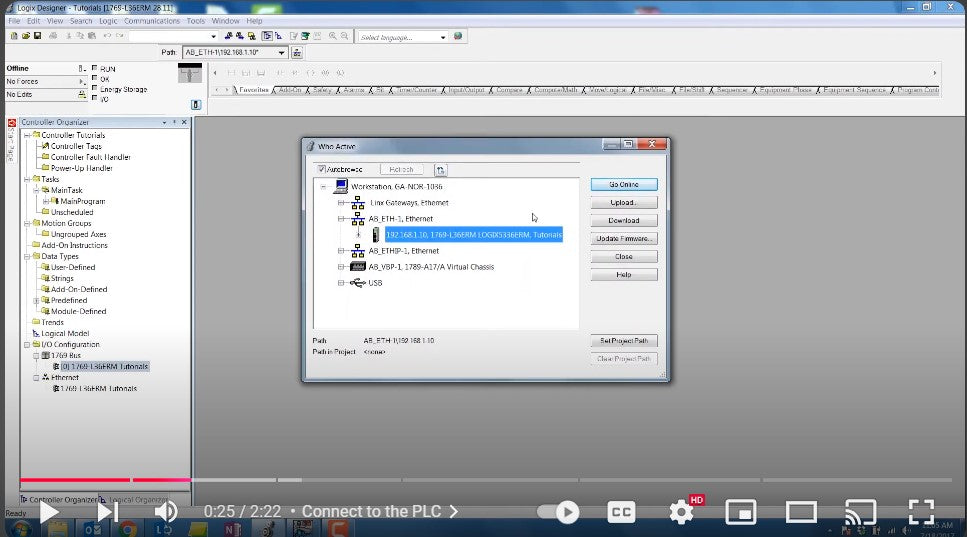

Q: Do you believe the swapping of the Current SD card to the new PLC will transfer the program over?   A:  It depends on how it was setup when programmed/last accessed   https://www.youtube.com/watch?v=ddb7rCPPMtI   If needed we know of a few local integrators that may be able to help if required.

Read more →
